PrismMaster®

Goniometer for high-precision optical angle measurements

PrismMaster® goniometers are used for high-precision optical angle measurements on prisms, polygons and wedges. Even after more than 20 successful years on the market, the PrismMaster® 300 HR from TRIOPTICS continues to set the standard for accuracy in the industry. The overall concept of the PrismMaster® series follows a simple philosophy: providing an instrument with unrivalled accuracy which is also easy to use.

Product Overview

PrismMaster® 300 HR

The world’s most accurate angle measurement device
PrismMaster 300 HR Precision Goniometer

When accuracy really matters, there is no alternative to the PrismMaster® 300 HR. With an accuracy of 0.25 arc seconds, it remains the world’s most accurate angle measurement device for prisms.

  • Outstanding absolute accuracy achieved in a single measurement

  • Measurement of a large variety of samples including microprisms with a minimum sample size of 1.5 mm²

  • Ultra-stable and accurate rotary air bearing

  • Stable granite frame for all measuring parts.

  • Measurement table in three different heights for easy adaption of different sample diameters and heights

PrismMaster® 300

Versatile automatic precision goniometer
PrismMaster 300 HR Precision Goniometer

The TRIOPTICS PrismMaster® 300 is a high precision and versatile automatic goniometer for angular measurements of prisms, polygons and wedges. It offersa number of innovative features:

  • High accuracy of 0.5 arcseconds

  • Stable granite frame for all measuring parts

  • Measurement table in three different heights

  • Outstanding absolute accuracy achieved in a single measurement

  • Measurement of a large variety of samples including microprisms
  • Ultra-stable and accurate rotary air bearing

PrismMaster® 150 HR

Economical and compact goniometer
PrismMaster 150HR

The PrismMaster® 150 HR is characterised by high efficiency and compact dimensions.  It is ideal for optical workshops as well as receipt and final inspection in production environments.

  • For a large variety of samples including microprisms with a minimum sample size of 1.0 mm²

  • Stable granite and steel frame for all measuring parts

  • Compact design with full system integration and single-cable connection

  • Outstanding absolute accuracy achieved in a single measurement

  • Ultra-stable and accurate rotary air bearing

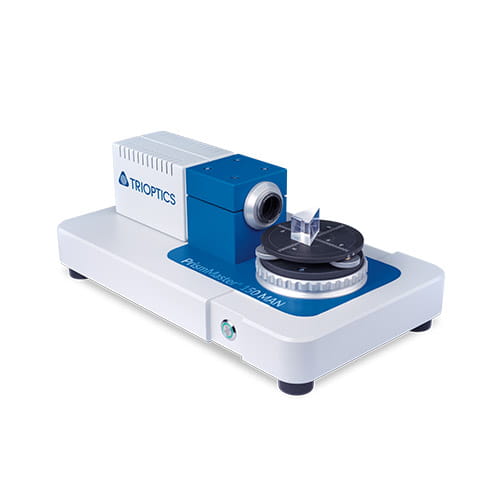

PrismMaster® 150 MAN

Manual, Compact Goniometer
PrismMaster® 150 MAN

The PrismMaster® 150 MAN is a manual compact goniometer

  • Angular measurements of prisms, polygons and wedges

  • Ideal for receipt and final inspection in production environments

  • Low installation requirements

  • Outstanding absolute accuracy achieved in a single measurement

  • No compressed air required due to accurate ball bearing and high performance angular encoder
  • Compact design with full system integration and single-cable connection

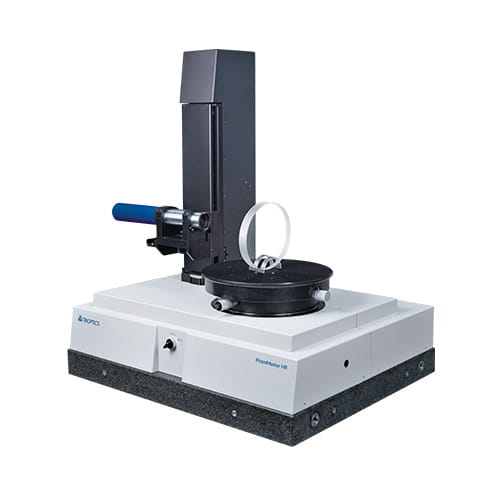

PrismMaster® 300 HR MAX

Automatic goniometer for large samples
PrismMaster® 300 HR MAX

The PrismMaster® 300 HR MAX rounds off the product range with a system for measurement of large samples

  • Measurement of a large variety of samples

  • Samples diameter of up to 420 mm

  • Motorized z-stage

  • Outstanding absolute accuracy achieved in a single measurement

  • Ultra-stable and accurate rotary air bearing

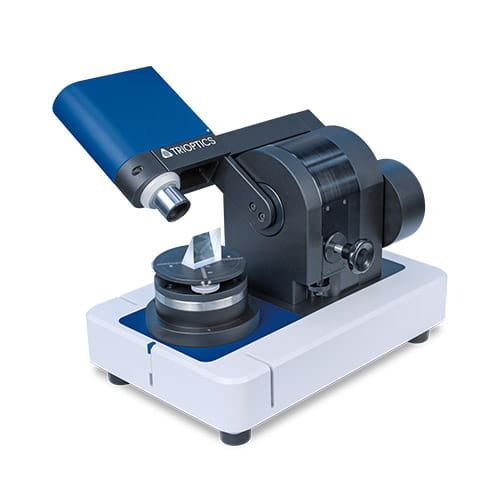

PrismMaster® Flex

Highly flexible goniometer for quality control
PrismMaster® Flex

The PrismMaster® Flex is a flexible and versatile configurable goniometer with a modular product concept.

  • Fast and easy quality control of prisms and plano optics in optics manufacturing

  • Three configuration levels: PrismMaster® Flex, 1D and 2D

  • Measurement in reflection for outer prism angles and in transmission for deflection angles

  • Basic configuration as comparison goniometer for production-related quality testing of prisms and plano optics, measurement times of less than 1 sec per sample

  • Configuration levels “1D” and “2D” for angle measurement in absolute values up to measurement of spatial angular relationships

  • Up to two additional (auto-)collimators as options for all configuration levels

  • Mechanical ball bearing, no compressed air required

Request PrismMaster®
PrismMaster Applications

Applications

PrismMaster®

  • Angle measurements of polygons, prisms and wedges

  • Surface tilt errors of prism and polygons

  • Wedge errors of optical windows

  • Index of refraction of optical glasses

  • Angles of microprisms

  • Pyramidal errors

  • Angular gauge block

PrismMaster® Flex

  • Comparison measurement of surface angle

    With optional additional collimator:

  • Comparison measurement of deflection angle

  • Absolute measurement of parallelism of plane parallel plates

    With optional additional autocollimator:

  • Comparison measurement on two surfaces

An encoder in the swivel arm offers the following measurement possibilities:

  • Surface angle

  • Tilt angle

    With optional additional collimator:

  • Deflection angle/transmission angle

  • Parallelism of plane parallel plates

    With optional narrowband lightsource

  • Refractive index

An additional encoder in the rotary table enables further measurement applications:

  • Spatial angular relationships

  • Wedge orientation

  • Tilt angle of strongly inclined surfaces

  • Pyramidal angle

    With optional additional collimator and autocollimator:

  • Beamsplitter cube

Software

PrismMaster® Software

Measuring Process of a Standard Sample

There is no easier way of achieving an immediate and ultra-accurate angle value of plano-optic components. The new software provides fully automated measurement of standard prisms and polygons:

  • Prism Configurator for the easy definition of non-standard and compound prisms

  • Software-automated sample tilt compensation (emulated tilt table) for quick and precise measurement of prism angles and pyramidal errors without laborious adjustments

  • Input of tolerance ranges and pass/fail classifications

  • Evaluation, display and recording of the measurement results according to ISO

Technical Data

ParameterPrismMaster® 300 HRPrismMaster® 300PrismMaster® 150 HRPrismMaster® 150 ManPrismMaster® 300 HR MAXPrismMaster® ComparisonPrismMaster® Flex
System accuracy0.25 arcsec0.5 arcsec1.0 arcsec 1.2 arcsec0.4 arcsec1.5 arcsec 1.5 arcsec1),2)
Tilt angle measurementon requeston requeston requeston request 1.5 arcsec
Pyramidal error 1 arcsec1 arcsec3 arcsec5 arcsec1 arcsec
Bearing of the sample table air bearingair bearingair bearingball bearingair bearingball bearingball bearing
Rotation of the sample tableautomaticautomaticautomaticmanualautomaticmanualmanual
Max. sample sizedia. 225 mmdia. 225 mmdia. 120 mmdia. 120 mmdia. 420 mmdia. 110 mmdia. 120 mm
Max. sample weight10 kg10 kg3 kg3 kg50 kg5 kg2 kg
Dimensions
(h x w x d)
310 mm x 790 mm x 460 mm 310 mm x 790 mm x 460 mm 180 mm x 550 mm x 330 mm180 mmx 470 mm x 270 mm880 mm x 1,050 mm x 1,000 mm600 mm x 360 mm x 480 mm510 mm x 300 mm x 450 mm
Autocollimator focal length300300150150300300/150150
Autocollimator aperture454532324545/3232
Electronic autocollimatorEFL 300 mm,
Diameter 57 mm
EFL 300 mm,
Diameter 57 mm
EFL 150 mm,
Diameter 38 mm
EFL 150 mm,
Diameter 38 mm
EFL 300 mm
Diameter 57 mm
EFL 300 mm/ 150mm
Diameter 57mm/ 38mm
EFL 150 mm,
Diameter 38 mm
Weight109 kg109 kg40 kg19 kg350 kg50 kg35 kg
TypeTable top deviceTable top deviceTable top deviceTable top deviceTable top deviceTable top deviceTable top device

1) 2.5 arcsec with PrismMaster® Flex 1D
2) 5 arcsec with PrismMaster® Flex 2D

Download Technical Data
Request PrismMaster®

Upgrades & Accessories

The functionality of your PrismMaster® is enhanced with comprehensive upgrades and accessories.

PrismMaster Upgrades

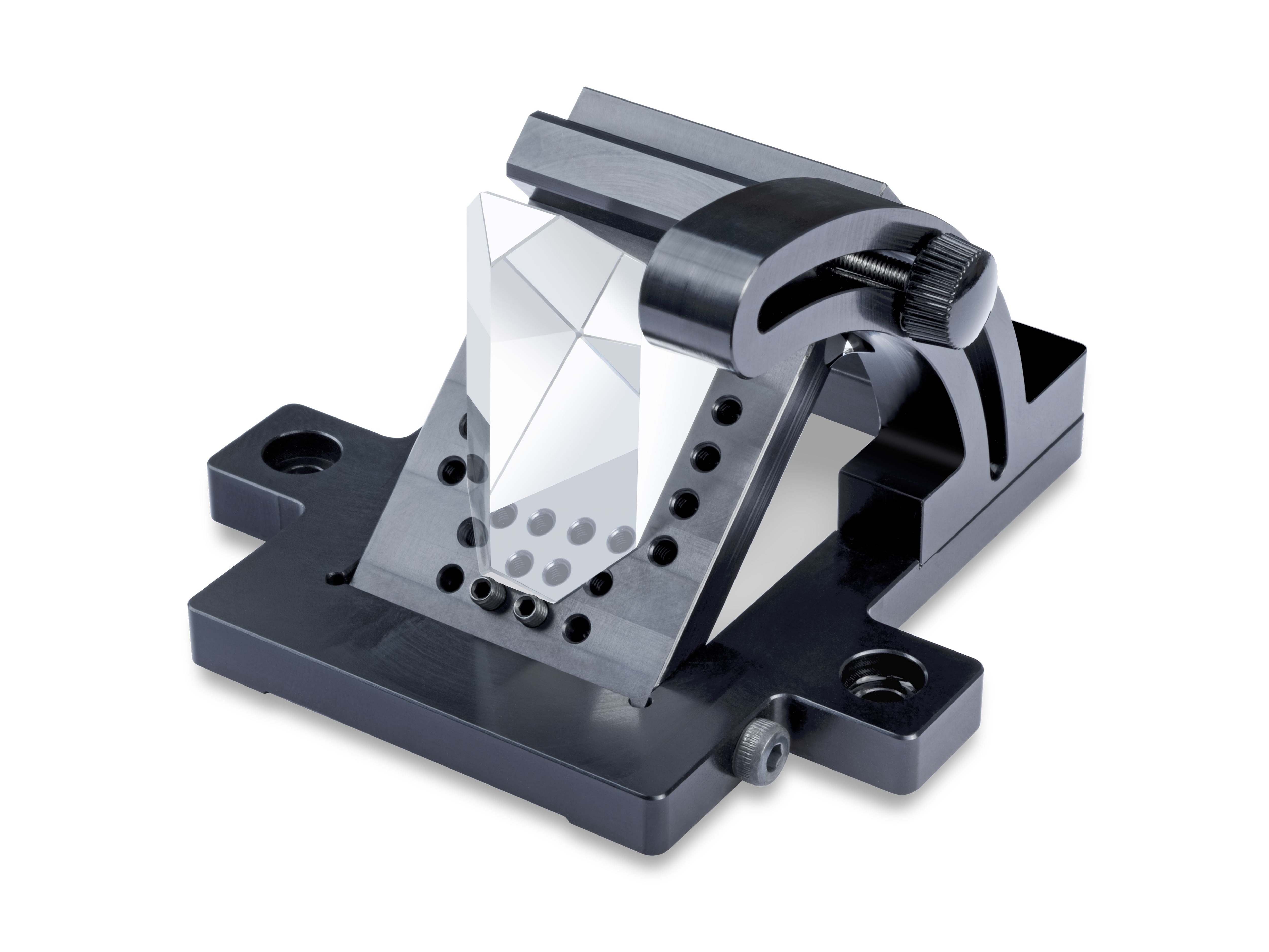

Roof Prism Mount

Small Prism Adapter

Small Prism Adapter

Viewfinder

Viewfinder

Upgrades PrismMaster

Three Point Support

PrismMaster Upgrades

Reference Sample (trapezoidal)

PrismMaster Measurement Cell

Measurement Cell

PrismMaster-Accessories

Narrowband lightsource
