ImageMaster® AR/VR
Measurement systems for Augmented and Virtual Reality optics
Unique
Extensive measuring parameters
Reliability
Products

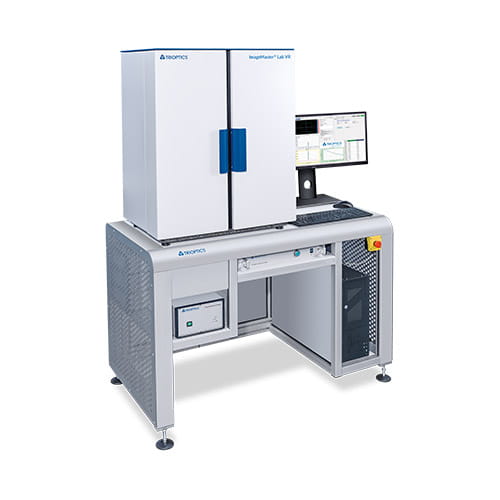

ImageMaster® Lab VR
Measurement device for testing VR lenses and lens systems
The ImageMaster® Lab VR was specifically developed for the measurement and qualification of virtual reality lenses.
- Measurement for various pupil distances and sizes
- On- and off-axis measurements allow testing of the entire field of view of the human eye
- Eyebox Scanning
More information
- High contrast programmable display is used as a light source and object generator
- Software-controlled RGB light source for measuring different wavelengths
- Integration of customer display possible

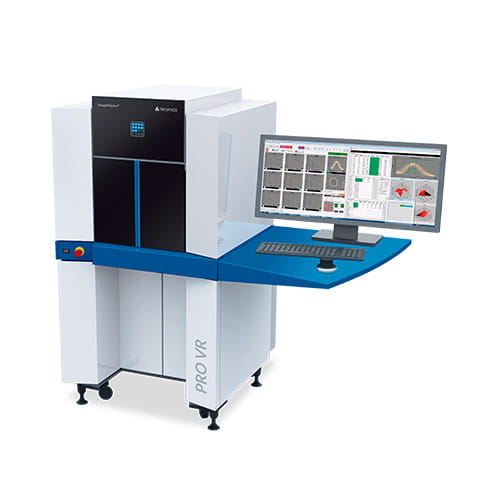

ImageMaster® PRO VR
Measurement solution for testing VR lenses and VR modules in production
The ImageMaster® PRO VR was specifically developed for the measurement of VR lenses and VR module qualification in production environment.
- 1.5 s measurement time per sample
- Measurement possible for various pupil distances and sizes
- On- and off-axis measurements allow testing of the entire field of view of the human eye
More information
- Up to 27 cameras
- Aperture to simulate the specific near to eye display requirements
- Accurate MTF measurement at high spatial frequencies on and off axis
- Software-controlled RGB light source for measuring different wavelengths
- Maximum Field of View 170° (optional)
- Clean room compatible

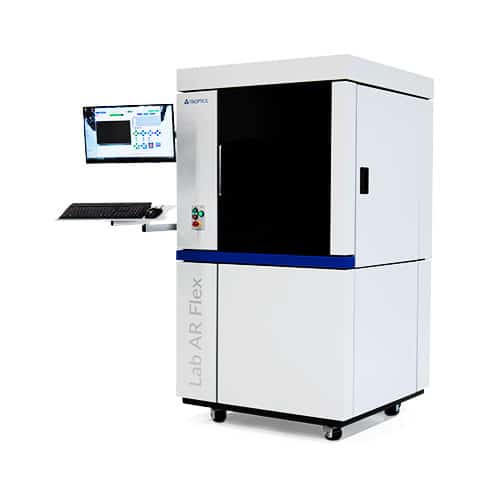

ImageMaster® Lab AR Flex
The multi-dimensional test solution for AR optics
The ImageMaster® Lab AR Flex is a measurement solution for transmission and reflection waveguides, correction glasses, light engines and complete Near-Eye Displays.
- Testing of AR components, modules and complete headsets
- Accurate MTF measurement at high spatial frequencies on- and off-axis
- Diffraction limited up to 60 lp/° (ISO, traceability, optical standards)
More information
- Eyebox scan at various incident angles
- Adjustable pupil size and eye-relief distance along with the full flexibility of input pupil location in X/Y plane for the complete eyebox scan
- Illumination sources with wide range of wavelengths and polarization
- Motorized optical system for virtual image distance (VID) and diopter measurement
- Metadata like part number, operator, etc. (freely configurable)
- Independent movement of telescope detector and target generator for both on-axis and off-axis measurements, one-shot wide field of view on-axis measurement (on request)
- Fully computerized control measurement sequence with robotic sample handling (on request)
- Precise measurement of image quality parameters such as MTF, sharpness, homogeneity, contrast, distortion, efficiency, color and luminance (on request)

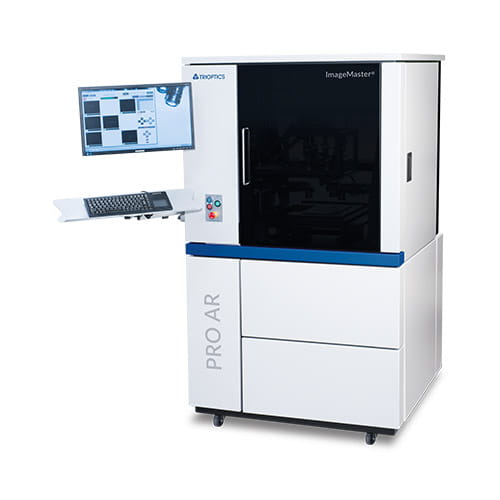

ImageMaster® PRO AR
Fast optical performance testing of waveguides in production
With the ImageMaster® PRO AR, TRIOPTICS offers an accurate and fast production test system for Augmented Reality optics. The ImageMaster® PRO AR measures single components like waveguides and projectors as well as complete AR modules.
- AR measurement solution for manufacturers, integrators, and independent testing laboratories
- Parallel measurement with up to 27 collimators and telescopes
- 0.3 s per measurement point
- Automatic positioning of samples using automated tray system
- Alignment and correlation of measurement data across production lines and R&D instruments
More information
- Measurement at various eye relief distances and with various pupil sizes
- Scanning of exit pupil (eyebox scan)
- Movable telescopes in x and y direction
- Effective aperture scan within exit pupil: Customizable field of view
- Software controlled RGB light source for measurement of different wavelengths
- Waveguide in transmission
- Waveguide in reflection
- Customized tray for sample handling
- Customized base with kinematic mount for quick and repeated loading/unloading of the tray
- AR modules testing (on request)
- AR projector testing (on request)

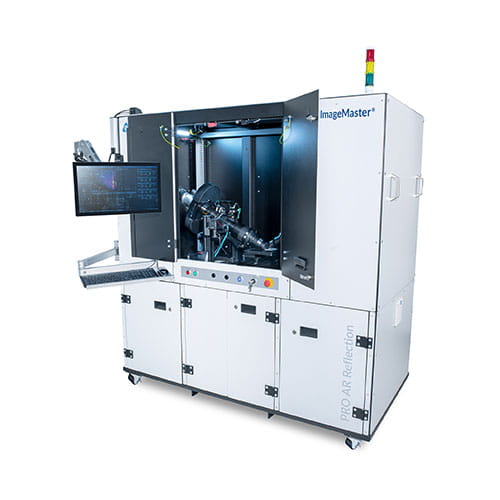

ImageMaster® PRO AR Reflection
AR waveguide testing solution for high volume production
The ImageMaster® PRO AR Reflection sets new standards with widefield diffraction-limited optics for unmatched accuracy, repeatability, and yield. Using a conoscope as core technology in the system, the image details are captured using a wide field of view (70° x 52.5°) in a one shot measurement. It offers manufacturers and integrators a comprehensive solution for the image quality validation of optical components for augmented reality (AR) applications.
Testing of Augmented Reality components and modules
- AR waveguide measurement solution for manufacturers, integrators, and independent testing laboratories
- Conoscope technology with one-shot measurement allows image details to be captured in a wide field of view of 70° x 52.5° (H x V)
- Wide range of measurement parameters including MTF, Effective Focal Length (EFL), Virtual Image Distance (VID), Distortion, Uniformity, Chief Ray Angle (CRA), Checkerboard contrast, Efficiency (optional), color (optional), and luminance (optional)
- High productivity with achievable takt times of less than 0.5 seconds*
- Diffraction-limited optics up to 30 lp/° ensure accurate and reproducible measurement results
- Alignment and correlation of measurement data across production lines and R&D instruments
* Depends on sample & number of measurement parameters
More information
- User-friendly MTF Studio software optimized for production environments
- Automatic alignment of the measurement system
- Excellent correlation among multiple instruments in the production line
- Installation as standalone instrument or seamless integration into production processes
- Optional robot sample handling flexibly adapts the system to higher production volumes
- 7+ degrees of freedom for the motion stages to enable comprehensive scanning of the sample under test, covering the complete field of view, eye-box, and focus adjustments

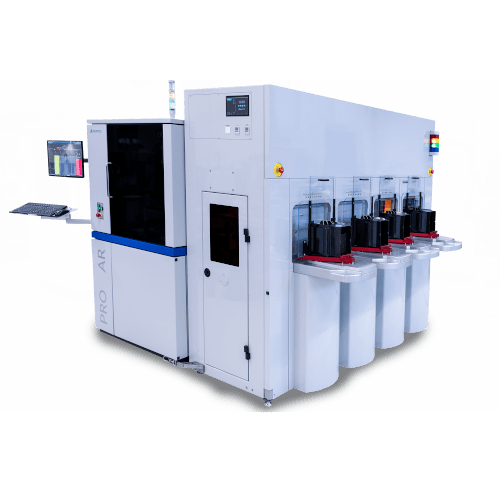

ImageMaster® PRO AR
Automated loading and unloading with wafer-handler
The ImageMaster® PRO AR with wafer-handler option enables fully automatic workflows in optical performance testing of waveguides in production. Robotic handling of wafers, a software controlled automatic measurement process and support for various wafer carriers ensure maximum performance and compatibility. The main measurement parameters are contrast (MTF), distortion, efficiency, and chromatic aberrations.
- Highly accurate measurement of contrast (MTF), distortion and efficiency over the field of view and eyebox
- Full eyebox scan, multiple field points are measured in parallel for shortest measurement duration
- Designed for transmission waveguides, optional support for reflection waveguides
- User-selectable pupil size, illumination wavelengths and polarization, as well as eye relief distance
Video

ImageMaster® PRO AR with wafer-handler
Get a first impression of high-speed optical performance testing of waveguides in production. The waferhandler is used for automated loading and unloading in a software controlled and automatic measurement process. In combination with the ImageMaster® PRO AR highly accurate measurement of contrast (MTF), distortion and efficiency over the field of view and eyebox is achieved.

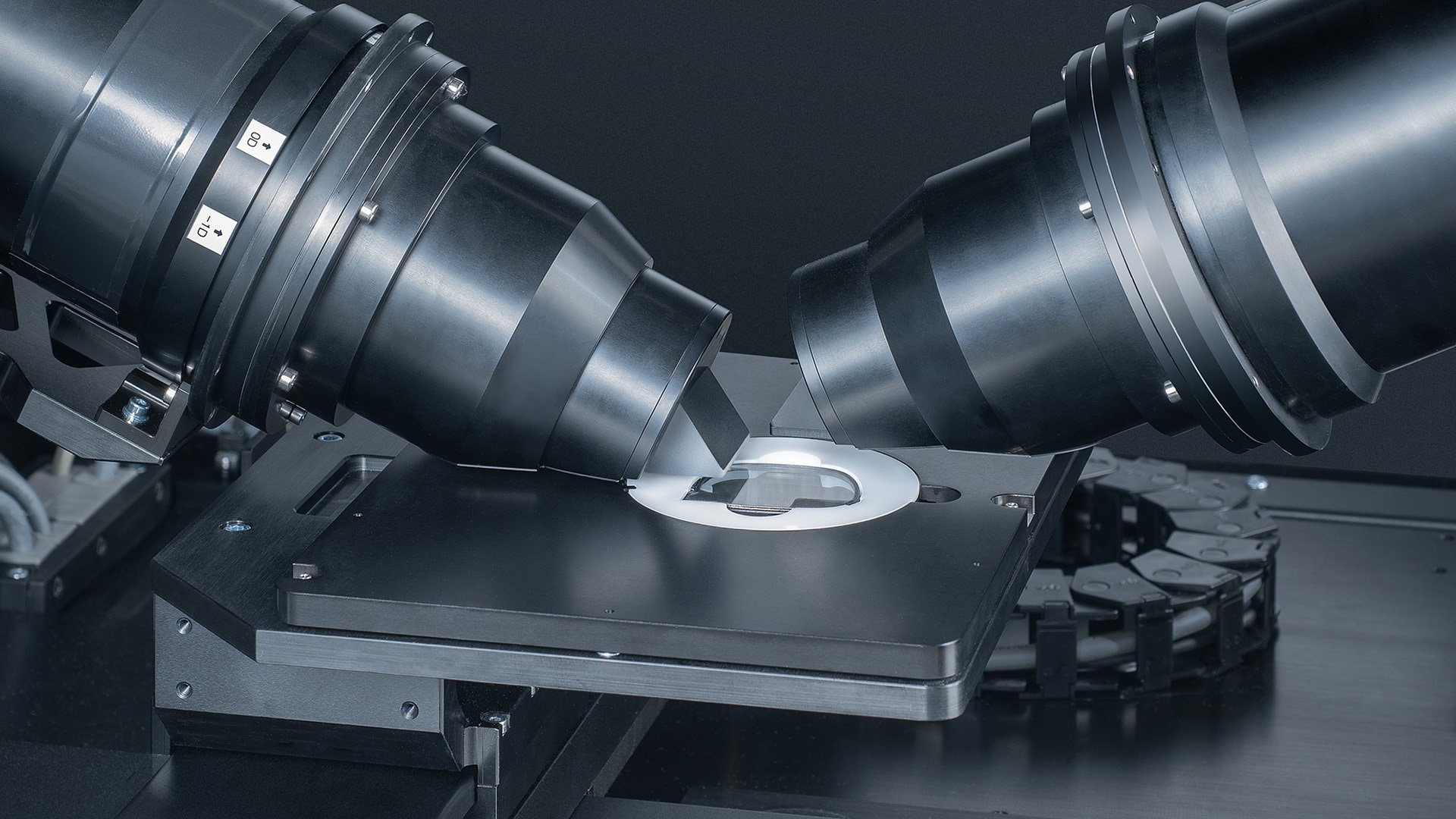

ImageMaster® PRO AR Reflection
Watch our video animation to learn more about the ImageMaster® PRO AR Reflection and discover how it can improve your AR optical component testing – packed with useful information on its widefield diffraction-limited optics, measurement parameters, and more. The ImageMaster® PRO AR Reflection offers a comprehensive solution for image quality validation of AR optical components. It features unmatched accuracy and productivity in AR waveguide testing, making it an essential device for manufacturers and integrators.
Software
Software for ImageMaster® Lab VR and Lab AR
- Scripting tools for customer-specific programming and analysis
- Functions for easy alignment of the sample
- Intuitive user interface and time-saving lens testing routines
- Certificate output in HTML format, can be imported to MS Excel

Measurement Service
AR|VR|MR optics

A whole range of parameters can be characterised with the help of our measurement service.
These include:
- MTF on- and off-axis
- Chromatic aberration
- Chief Ray Angle
- Efficiency
- Color
- Luminance
In the measurement service we can carry out Eyebox scan, Field of View scan, Eye relief scan.
