Straightness measurement with electronic autocollimators
Optical measurement technology ensures precision in mechanical engineering
The precise measurement of machine components is a frequent requirement in mechanical engineering in the context of quality inspections. The focus is on a high level of precision as well as simple and software-supported operation. These requirements are met to a major extent by non-contact, optical measurement devices.
![Maschinenbau_1 TriAngle-Application-Icon-Parallel-Straightness](https://trioptics.com/wp-content/uploads/2019/11/Maschinenbau_1.jpg)
Straightness measurement of linear guides
Whenever linear guides for mechanical engineering applications go through final acceptance tests to qualify their straightness, a high level of precision is necessary for the measurement technology. The computer-supported electronic autocollimators of the TriAngle series measure the straightness of guide rails with a precision of up to 1 μm/m.
![Maschinenbau_2 TriAngle-Application-Icon-Flatness-Measurement-high-res](https://trioptics.com/wp-content/uploads/2019/11/Maschinenbau_2.jpg)
Measurement of parallelism and flatness
Electronic autocollimators of the TriAngle series are ideal for the high-precision, non-contact measurement of the parallelism of machine guides. A vertical profile along the direction of motion of a mirror on the rail is measured and evaluated using software support. In addition, measurement of the flatness of surfaces may be carried out.
![Maschinenbau_3 TriAngle-Application-Icon-Rotary-Table](https://trioptics.com/wp-content/uploads/2019/11/Maschinenbau_3.jpg)
Rotary table calibration with electronic autocollimators
Rotary tables are used for positioning tools and workpieces in machining centers. Non-contact measurement of the positioning accuracy of the rotary tables increases manufacturing precision. Rotary table calibration using electronic autocollimators of the TriAngle series only needs a short set-up time and is carried out with very high precision. The intuitive software ensures that the measuring process can be learned quickly.
Our products for mechanical engineering
Electronic autocollimators – TriAngle
• Alignment and straightness of motorized stages
• Measurement of the rotary axis of a spindle
• Parallelism of cylinders or bore holes
• Alignment of shafts
• Flatness measurement

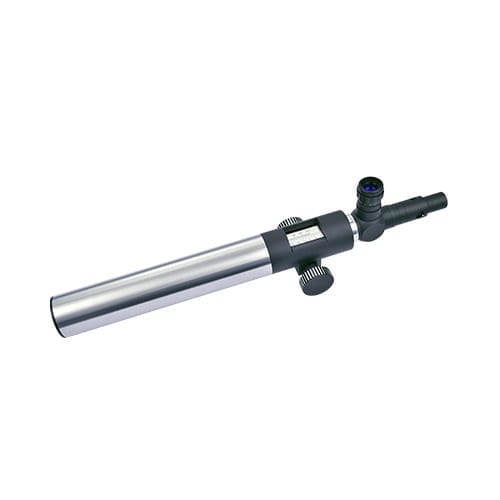

Visual optical measuring instruments – OptiTest®
• Alignment and straightness of motorized stages
• Measurement of the rotary axis of a spindle
• Parallelism of cylinders or bore holes
• Alignment of shafts
• Flatness measurement

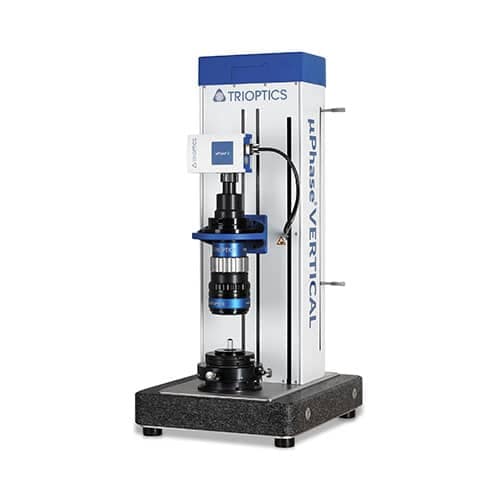

Compact and flexible interferometer - µPhase®
• Monitoring of production processes
• Measurement of tool offsets on ultra-precision
machining centers
