ImageMaster® ENDO PRO

Image quality testing of endoscopes

In the production of medical endoscopes, the reliable quality control of the imaging quality is essential. With its fully automated, software-controlled measuring process, the ImageMaster® ENDO PRO ensures efficient and operator-independent quality control in the production of endoscopes.

ImageMaster-HR-TempControl-Image-Quality-Test-Wide-Temperature-Range-Detail

Applications

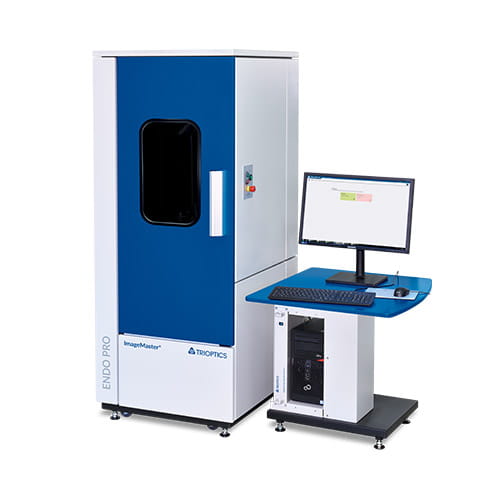

ImageMaster® ENDO PRO

ImageMaster® ENDO PRO

The following measuring parameters can be measured:

  • MTF on-axis and off-axis

  • Direction of view (DOV)

  • Field of view (FOV)

  • Apparent field of view (AFOV)

  • Distortion

  • Magnification

  • Diopter

  • Image runout

  • Optional: Vignetting, Lighting

Request ImageMaster® ENDO PRO

Technical Data

ParameterImageMaster® ENDO PRO
Accuracy
(MTF on-axis and off-axis)
±0.03 MTF
Repeatability
(MTF on-axis and off-axis)
±0.02 MTF
Endoscope lengths140 mm … 550 mm
Max. object distance50 mm
Measurement time for all standard parameters3 min
Measurement time for standard and extended Parameters4 min
Off-axis measurement points12 (others on request)
Direction of view0 … 70°
Max. field of view120°
Max. object height±35 mm
Dimensions with table (height x width x depth)1,900 mm x 1,550 mm x 900 mm
Weight with table470 kg
TypeStand alone
Technical Data
Download Technical Data
Request ImageMaster® ENDO PRO

Software

The software ProCam® consists of various elements for fully automatic alignment:

  • With the integrated script tool, the measurement and alignment processes can be adjusted easily to match the specific requirements of customers and equipment
  • Storage of the measurement results in a database to allow complete traceability and extensive data analysis
  • Barcode scanner implementable
  • Output of the measurement report in PDF and Excel format
  • A fully automated alignment of the detector and the reticle to the endoscope is performed by means of high-precision image analysis algorithms
  • User administration with different access rights
