Goniometer-Spectrometer for determination of the refractive index

SpectroMaster® Goniometer-Spectrometers are employed by optical glass manufacturers, national metrology institutes as well as scientific research institutes with highest accuracy demands for the determination of the refractive index and dispersion of optical glass and crystalline materials in the UV, VIS or IR spectral range.

Product Overview

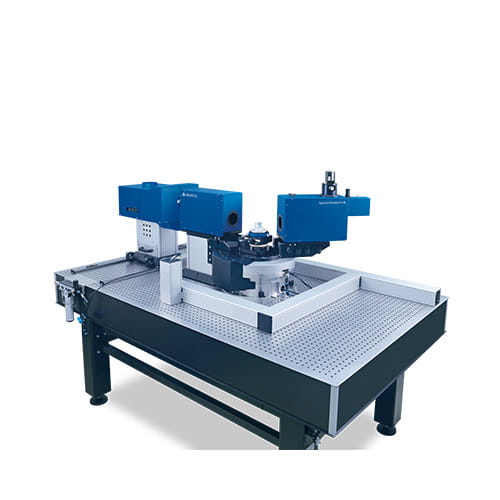

SpectroMaster® 600 HR

Automated Precision-Goniometer-Spectrometer

SpectroMaster® 600 HR

The SpectroMaster® 600 HR is the most accurate refractive index measurement system currently on the market.
This accuracy is the result of ultra-high precision components like the motorized air bearing rotary table or the high-class mirror optics and the high-quality manufacturing including careful inspection of all relevant parameters. The motorized goniometer is equipped with backlash-free piezo motors of negligible power dissipation for optimum thermal stability.

  • Highest accuracy of 2×10⁻⁶ in the determination of the refractive index

  • Maximum wavelength range of 195 nm to 12,000 nm

  • Fully automated measurement procedure

  • Motorized filter and spectral lamp changer wheel

  • Motorized goniometer

  • Motorized sample table

  • Collimator and autocollimator based on mirror optics. No refocusing over the entire spectral range necessary

  • Equipped as standard with Hg and Cd spectral lamps

  • Further spectral lamps optionally available

  • Equipped as standard with CCD for measurement in the spectral range 365 nm – 1,014 nm

  • Further detectors available to extend the measurable spectral range between 195 nm – 2,325 nm

  • Infrared light sources between 4,000 nm – 12,000 nm and infrared detectors optionally available

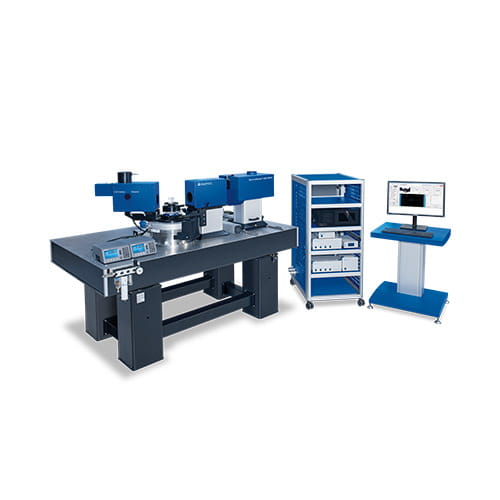

SpectroMaster® 600 MAN

Manual precision Goniometer-Spectrometer

SpectroMaster® 600 MAN

The SpectroMaster® 600 MAN works with mirror optics and thus retains the advantage that the collimator and autocollimator do not have to be refocused over the entire measurable spectral range. The lamp change wheel, goniometer and sample table can be operated manually and the user is guided through the measurement procedure with software support. The measurement system achieves excellent accuracy in refractive index measurement and is therefore an alternative to the fully automated SpectroMaster® 600 HR with lower requirements in the measurable spectral range and measurement speed.

  • Accuracy of 4×10⁻⁶ in the determination of the

  • Maximum wavelength range of 365 nm to 1,014 nm

  • Sophisticated software assistance and alignment indicators for high accuracy in manual operation

  • Motorized filter changer wheel, manually operated lamp changer wheel

  • Precision mechanics for manual operation of the goniometer and the sample table

  • Collimator and autocollimator based on mirror optics. No refocusing over the entire spectral range necessary

  • Equipped as standard with Hg and Cd spectral lamps

  • Further spectral lamps optionally available

  • Equipped with CCD for measurement in the spectral range 365 nm – 1,014 nm

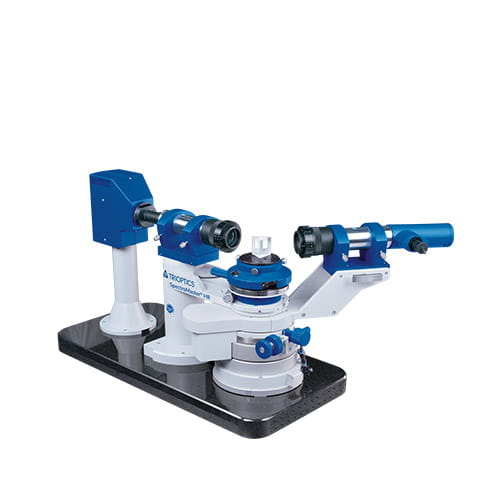

SpectroMaster® 300 MAN

Manual precision Goniometer-Spectrometer

SpectroMaster® 300 MAN

The SpectroMaster® 300 MAN uses refractive optics.  The high accuracy of this instrument is achieved by special focusing optics, so that the telescope and the collimator are focused to best collimation at the specific measurement wavelength. It offers a very high system accuracy for refractive index measurement.

  • Accuracy of 5×10⁻⁶ in the determination of the refractive index

  • Maximum wavelength range from 365 nm to 1,014 nm

  • Sophisticated software assistance and alignment indicators for high accuracy in manual operation

  • Focusable collimator and focusable autocollimator for a wide spectral range

  • High accuracy due to special focusing optics: Telescope and collimator can be focused to best collimation at the specific measurement wavelength.

  • Very high system accuracy for refractive index measurement and for angle measurement

  • Manual air bearing rotary table

  • HgCd spectral lamp

  • Manual filter change

  • Precision mechanics for manual operation of the goniometer and the sample table

  • Manually focusable collimator and autocollimator to achieve high measurement accuracy over the entire spectral range

  • Equipped as standard with a spectral lamp (HgCd). No lamp changer

  • Manually operated lamp changer and further spectral lamps optionally available

  • Equipped with CCD for measurement in the spectral range 365 nm – 1,014 nm

SpectroMaster® with Operator

Software

SpectroMaster® Software

The complete functionality of the SpectroMaster® instrument is controlled by an integrated Windows 7 based software program.
It processes the measured values from autocollimator and high-precision angle encoder to an exact measured value for the refractive index.
With the motorized SpectroMaster® 600 HR, measurements can be performed fully automatically over the complete spectral range. If an approximation for the refractive index of a certain glass type is known, the software searches and automatically measures each programmed spectral line and gives a report on the measured refractive indices. The initial approximation for the refractive index can either be entered manually by the user or calculated by the software via an integrated glass database from stored dispersion coefficients. Additionally, sophisticated tools enable the quick and easy characterization of unknown glass types, so that accurate refractive index data can be obtained in a few minutes. Of course, the software corrects the measurement data to take into account the ambient air refractive index depending on temperature, humidity and pressure.

In CCD camera measurements the software relies on the approved image analysis algorithms of TRIOPTICS PrismMaster® and OptiAngle® instruments for the accurate detection of spectral line positions.
For measurements with scanning photo detectors which are used in the UV and IR spectral range, the spectral line profiles are scanned automatically and with high resolution, so that the line center position is determined with highest precision. Full motorization ensures maximum independence from the skill of the operator. However, it has been proven that the manual models SpectroMaster® 600 MAN and SpectroMaster® 300 MAN could reach similarly high system accuracy due to precise alignment indicators assisting the operator in gaining maximum accuracy.
Of course, the software generates a complete and detailed measurement certificate. For further analysis, a text data output format is available, too.

Technical Data

ParameterSpectroMaster® 600 HRSpectroMaster® 600 MANSpectroMaster® 300 MAN
Max. measurable wavelength range. Specific wavelengths are discrete and depend on the chosen light source195 nm … 12000 nm365 nm … 1014 nm365 nm … 1014 nm
Standard measurable wavelength range.
Specific wavelengths are discrete and depend on the chosen light source
365 nm … 1014 nm365 nm … 1014 nm405 nm … 643 nm
Optional measurable wavelength range. Specific wavelengths are discrete and depend on the chosen light sourceUV: 195 nm … 365 mm --UV: 365 nm
SWIR: 1014 nm … 2325 nmNIR: 1014 nm
MWIR / LWIR: 4000 nm … 12000 nm
Apex angle measurement accuracy 1± 0.2 arcsec± 0.4 arcsec± 0.5 arcsec
Refractive index measurement accuracy 1± 2∙10-6± 4∙10-6± 5∙10-6
Refractive index measurement repeatability (1σ)
UV: 195 nm … 365 mm 23∙10-6 -- --
VIS / NIR: 365 nm … 1014 nm1∙10-61∙10-61∙10-6
SWIR: 1014 nm … 2325 nm 35∙10-6 -- --
MWIR / LWIR: 4000 nm … 12000 nm 41∙10-4 -- --

1) Accuracy is traceable to national standards and repeatability is demonstrated by measurement of a certified reference prism (material N-BK7, homogeneity H4, apex angle 65°, aperture Ø30mm, surface quality λ/10) at the following wavelengths: 404.6 / 435.8 / 479.9 / 508.6 / 546.1 and 643.8 nm.

Compliance with the above specifications requires optimum and stable environmental conditions in terms of temperature (±0.1°C), humidity (50-70%), pressure (±0.5 hPa) and airflow, high surface quality of the specimen (< λ/10) and an aperture of not less than Ø30 mm. We also recommend the “Meteo Station 5-400-030” as an accessory for monitoring ambient conditions.

2) Verified at the wavelengths 312 and 365 nm with a reference specimen (material quartz glass, tip angle 65°, aperture Ø30 mm).

3) Verification at the wavelengths 1014 and 1530 nm with a reference specimen (material N-BK7, tip angle 65°, aperture Ø30 mm).

4)Verification at a wavelength in the specified range with a reference specimen (material ZnSe, tip angle 20°, aperture Ø20 mm).

Knowledge Base

Measurement Principle

Minimum deviation method

The minimum deviation method as described by Fraunhofer at the beginning of the 19th century is sketched below. It is based on the refraction of light by a precise prism manufactured from the optical material under investigation. A bundle of monochromatic collimated light from a collimator enters at one surface of the prism and is refracted at a certain deviation angle δ when leaving the second surface. The deviation angle is a function of the wavelength λ and is measured by a telescope attached to a goniometer table. The angle enclosed by the two prism surfaces is generally called the apex angle α of the prism. When the incidence angle θ at which the light enters the prism is changed, the deviation angle δ changes too. It can be shown that the deviation angle δ becomes minimal when the angle θ’ at which the beam leaves the second surface is equal to θ, i.e. θ = θ’. This symmetric case is the so-called minimum deviation condition. In this case, the index of refraction of the prism material can be calculated according to

More knowledge for experts

This article inspired you? Are you looking for further knowledge transfer?
Then you might also be interested in the following topics …

TRIOPTICS SpectroMaster® KnowledgeBase
TRIOPTICS SpectroMaster® Knowledge Base
TRIOPTICS SpectroMaster® Knowledge Base

Where nair is the refractive index of the ambient air. nair is a function of the wavelength λ, temperature T, pressure p and humidity and can be calculated with sufficient accuracy from p and T with the generally approved Edlén equation. In most cases, the humidity can be neglect- ed. Since these calculations are quite complex and error-prone, this is done automatically by the instrument software.

The refractive index can be determined only when the apex angle α is precisely known. Both angles α and δ are measured with an ultra-precision goniometer with sub-arcsecond accuracy.  The apex angle α is measured with an autocollimator attached to the goniometer table.
